Improve Backup and Restore Efficiency using Multiple Threads and Faster Compression Methods

Summary

Longhorn is capable of backing up or restoring volume in multiple threads and using more efficient compression methods for improving Recovery Time Objective (RTO).

Related Issues

https://github.com/longhorn/longhorn/issues/5189

Motivation

Goals

• Support multi-threaded volume backup and restore.
• Support efficient compression algorithm (lz4) and disable compression.
• Support backward compatibility of existing backups compressed by gzip.

Non-goals

• Larger backup block size helps improve the backup efficiency more and decrease the block lookup operations. In the enhancement, the adaptive large backup block size is not supported and will be handled in https://github.com/longhorn/longhorn/issues/5215.

Proposal

1. Introduce multi-threaded volume backup and restore. Number of backup and restore threads are configurable by uses.
2. Introduce efficient compression methods. By default, the compression method is lz4, and user can globally change it to none or gzip. Additionally, the per-volume compression method can be customized.
3. Existing backups compressed by gzip will not be impacted.

User Stories

Longhorn supports the backup and restore of volumes. Although the underlying computing and storage are powerful, the single thread implementation and low efficiency gzip compression method lead to slower backup and restore times and poor RTO.The enhancement aims to increase backup and restore efficiency through the use of multiple threads and efficient compression methods. The new parameters can be configured to accommodate a variety of applications and platforms, such as limiting the number of threads in an edge device or disabling compression for multimedia data.

User Experience In Details

• For existing volumes that already have backups, the compression method remains gzip for backward compatibility. Multi-threaded backups and restores are supported for subsequent backups.
• By default, the global backup compression method is set to lz4. By editing the global setting backup-compression-method, users can configure the compression method to none or gzip. The backup compression method can be customized per volume by editing volume.spec.backupCompressionMethod for different data format in the volume.
• Number of backup threads per backup is configurable by the global setting backup-concurrent-limit.
• Number of restore threads per backup is configurable by the global setting restore-concurrent-limit.
• Changing the compression method of a volume having backups is not supported.

CLI Changes

• Add compression-method to longhorn-engine binary backup create command.
• Add concurrent-limit to longhorn-engine binary backup create command.
• Add concurrent-limit to longhorn0engine binary backup restore command.

API Changes

• engine-proxy
  • Add compressionMethod and concurrentLimit to EngineSnapshotBackup method.
  • Add concurrentLimit to EngineBackupRestore method.
• syncagent
  • Add compressionMethod and concurrentLimit to syncagent BackupCreate method.
  • Add concurrentLimit to syncagent BackupRestore method.

Design

Implementation Overview

Global Settings

• backup-compression-method
  • This setting allows users to specify backup compression method.
  • Options:
    • none: Disable the compression method. Suitable for multimedia data such as encoded images and videos.
    • lz4: Suitable for text files.
    • gzip: A bit of higher compression ratio but relatively slow. Not recommended.
  • Default: lz4
• backup-concurrent-limit
  • This setting controls how many worker threads per backup job concurrently.
  • Default: 5
• restore-concurrent-limit
  • This setting controls how many worker threads per restore job concurrently.
  • Default: 5

CRDs

1. Introduce volume.spec.backupCompressionMethod
2. Introduce backup.status.compressionMethod

Backup

A producer-consumer pattern is used to achieve multi-threaded backups. In this implementation, there are one producer and multiple consumers which is controlled by the global setting backup-concurrent-limit.

• Producer
  • Open the disk file to be backed up and create a Block channel.
  • Iterate the blocks in the disk file.
    • Skip sparse blocks.
    • Send the data blocks information including offset and size to Block channel.
    • Close the Block channel after finishing the iteration.
• Consumers
  • Block handling goroutines (consumers) are created and consume blocks from the Block channel.
  • Processing blocks
    • Calculate the checksum of the incoming block.
    • Check the in-memory processingBlocks map to determine whether the block is being processed.
      • If YES, end up appending the block to Blocks that record the blocks processed in the backup.
    • If NO, check the remote backupstore to determine whether the block exists.
      • If YES, append the block to Blocks.
    • If NO, compress the block, upload the block, and end up appending it to the Blocks.
  • After the blocks have been consumed and the Block channel has been closed, the goroutines are terminated.

Then, update the volume and backup metadata files in remote backupstore.

Restore

A producer-consumer pattern is used to achieve multi-threaded restores. In this implementation, there are one producer and multiple consumers which is controlled by the global setting restore-concurrent-limit.

• Producer
  • Create a Block channel.
  • Open the backup metadata file and get the information, offset, size and checksum, of the blocks.
  • Iterate the blocks and send the block information to the Block channel.
  • Close the Block channel after finishing the iteration.
• Consumers
  • Block handling goroutines (consumers) are created and consume blocks from the Block channel.
  • It is necessary for each consumer to open the disk file in order to avoid race conditions between the seek and write operations.
  • Read the block data from the backupstore, verify the data integrity and write to the disk file.
  • After the blocks have been consumed and the Block channel has been closed, the goroutines are terminated.

Performance Benchmark

In summary, the backup throughput is increased by 15X when using lz4 and 10 concurrent threads in comparison with the backup in Longhorn v1.4.0. The restore (to a volume with 3 replica) throughput is increased by 140%, and the throughput is limited by the IO bound of the backupstore server.

Setup

Platform	Equinix
Host	Japan-Tokyo/m3.small.x86
CPU	Intel(R) Xeon(R) E-2378G CPU @ 2.80GHz
RAM	64 GiB
Disk	Micron_5300_MTFD
OS	Ubuntu 22.04.1 LTS(kernel 5.15.0-53-generic)
Kubernetes	v1.23.6+rke2r2
Longhorn	master-branch + backup improvement
Nodes	3 nodes
Backupstore target	external MinIO S3 (m3.small.x86)
Volume	50 GiB containing 1GB filesystem metadata and 10 GiB random data (3 replicas)

Results

• Single-Threaded Backup and Restore by Different Compression Methods



• Multi-Threaded Backup



• Multi-Threaded Restore to One Volume with 3 Replicas



  Restore hit the IO bound of the backupstore server, because the throughput is saturated from 5 worker threads.

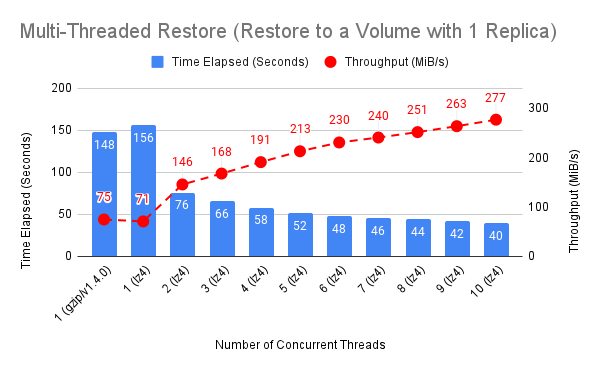

• Multi-Threaded Restore to One Volume with 1 Replica



Test Plan

Integration Tests

1. Create a volumes and then create backups using the compression method, none, lz4 or gzip and different number of backup threads. The backups should succeed.
2. Restore the backups created in step 1 by different number of restore threads. Verify the data integrity of the disk files.
